2027 Husqvarna FE 501s - Q71169

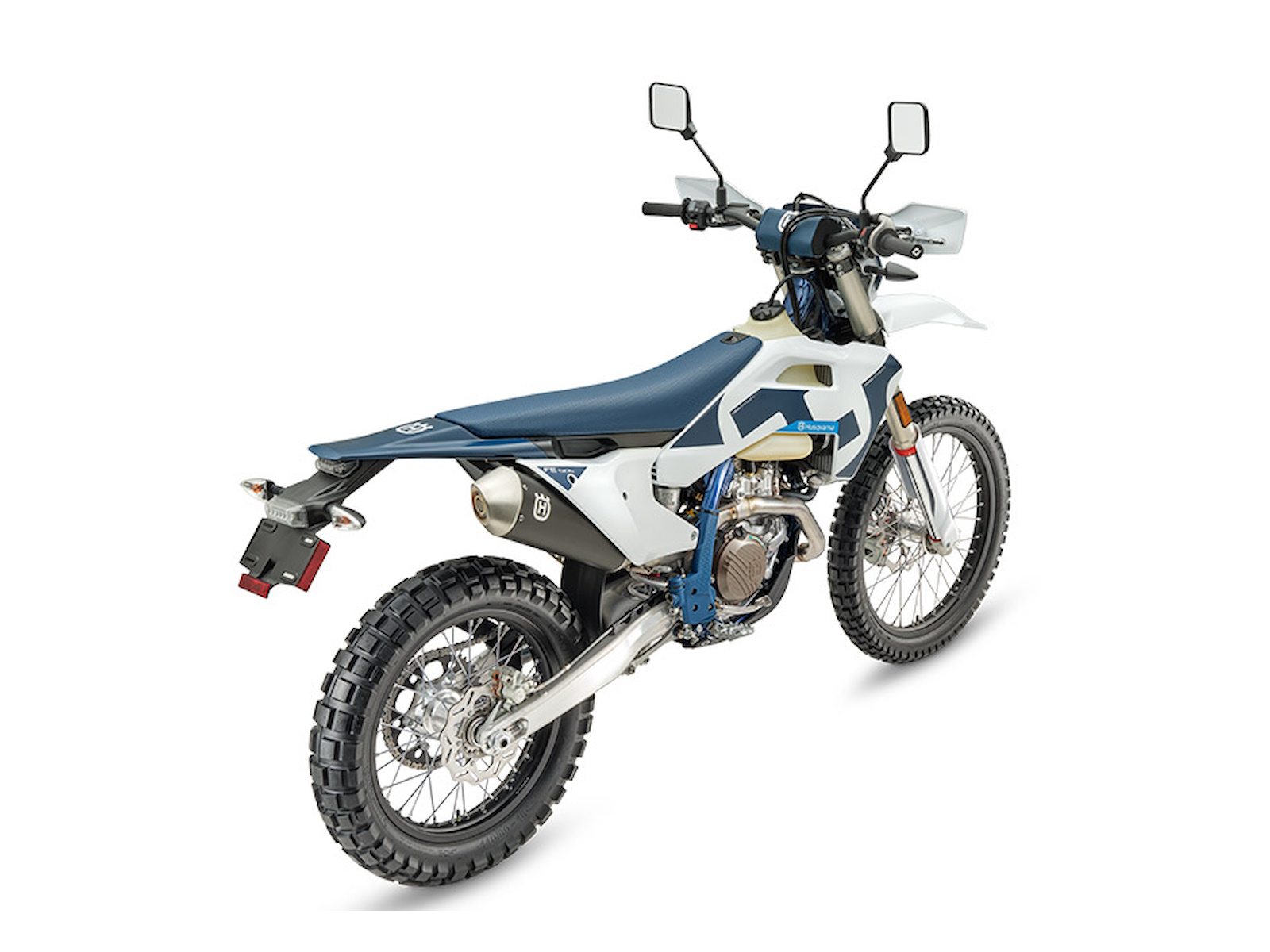

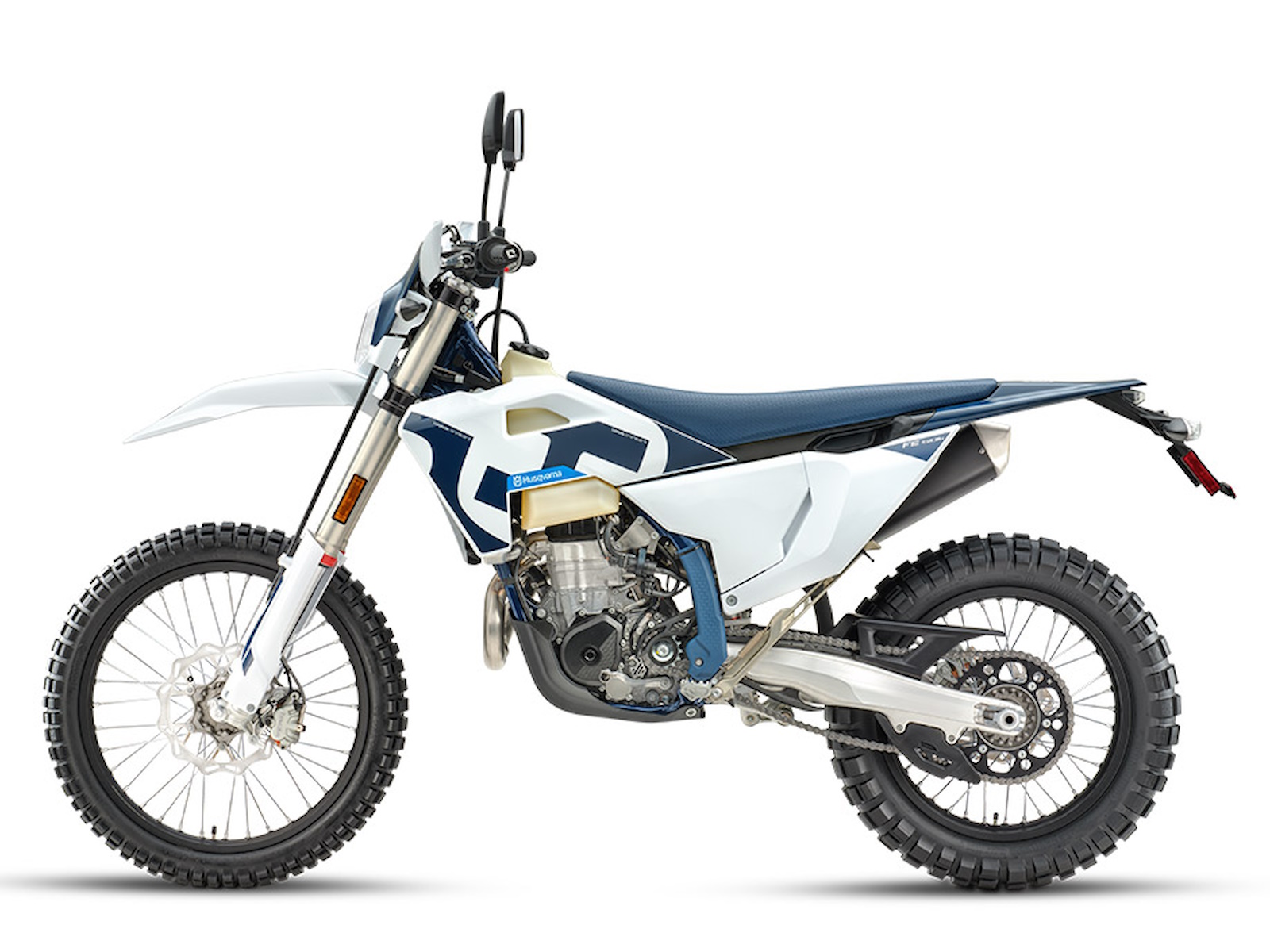

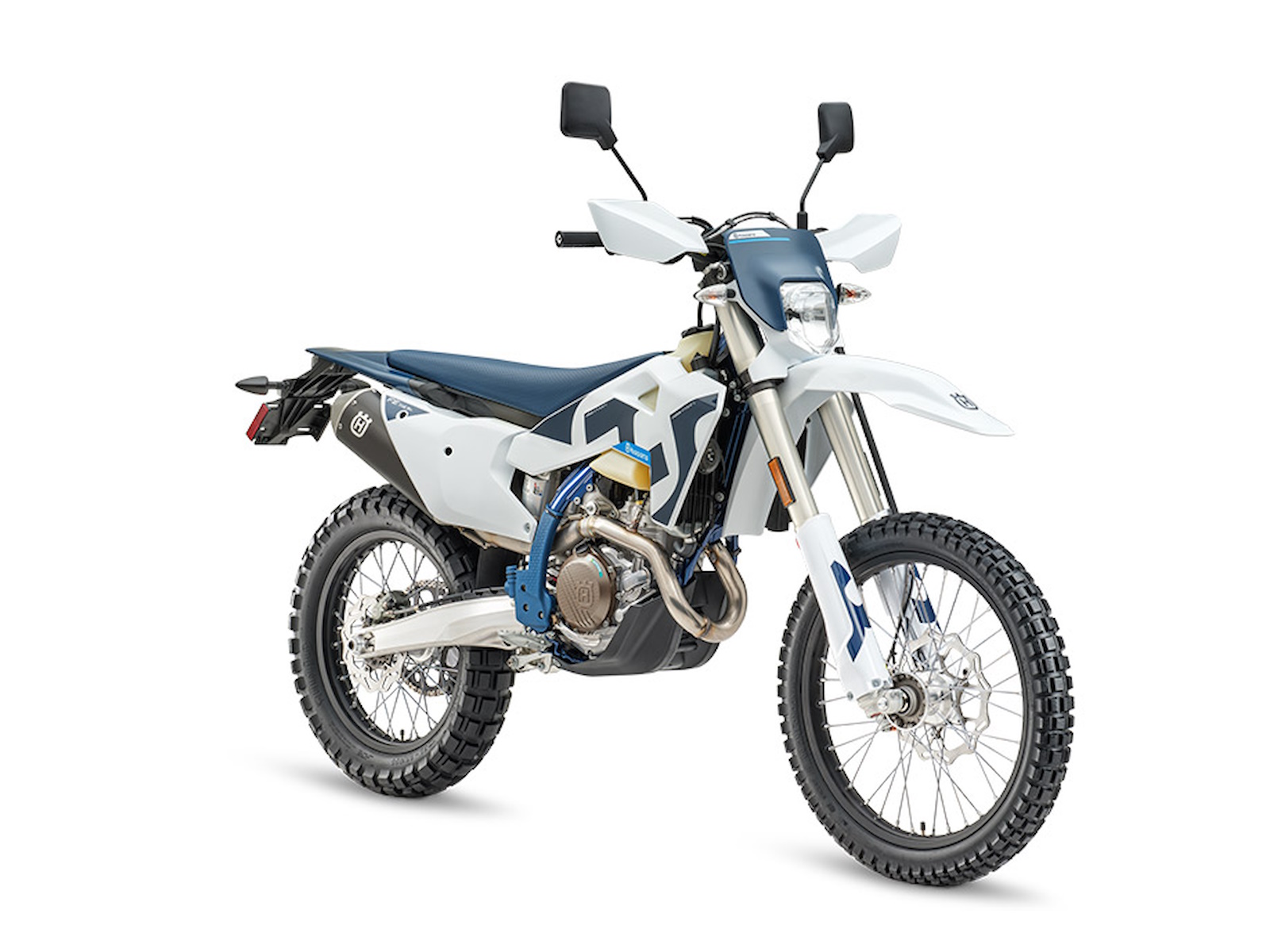

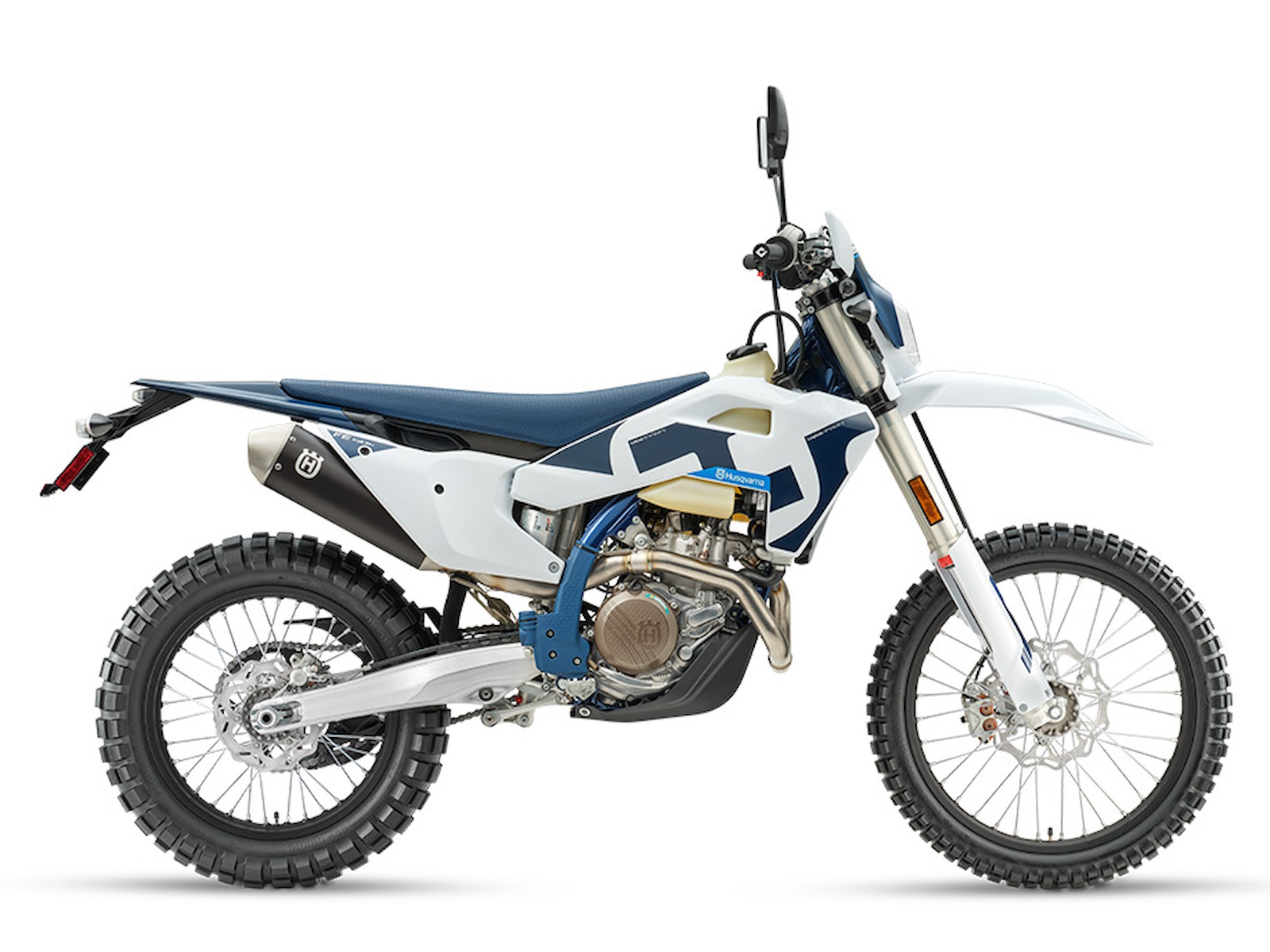

2027 Husqvarna FE 501s

The latest technology and premium components ensure the FE 501s offers a riding experience like nothing else. Advanced electronics tame the most powerful machine in the dual-sport line-up with the FE 501s delivering a broad spread of controllable power. Inside the engine, the shaft arrangements are positioned at the ideal centre of gravity to vastly benefit manoeuvrability, which is complemented further by the perfectly balanced chassis and WP XACT suspension. Expertly assembled with high-quality components throughout, the FE 501s is finished with functional bodywork adorned with new graphics inspired by the Swedish heritage of the brand.

Features May Include:

Engine

• The FE 501s engine is the most powerful model in the Husqvarna Motorcycles FE line-up and benefits from advanced engineering techniques to deliver maximum performance. The engine is positioned in the frame to assist with the anti-squat behaviour of the chassis while also helping to centralise mass.

Cylinder head

• The SOHC cylinder head is incredibly compact and lightweight with the camshaft positioned as close to the center of gravity as possible. A durable, fine-punched cam chain and Diamond-Like Carbon (DLC) coated rocker arm offer optimal efficiency and reliability with a single oil spray jet providing effective cooling. Valve timings are optimized for maximum torque and a smooth power delivery.

Cylinder and piston

• The lightweight aluminum cylinder is an engineering masterpiece with a 95 mm bore and a stroke of 72 mm. Inside, the forged CP bridged-box-type piston features anodized annular grooves for added durability and extended service intervals. The compression ratio remains unchanged at 12.75:1.

Crankcases

• Designed to be low in weight without sacrificing strength or reliability, the crankcases are made using a high-pressure die cast production process to create a thin-wall design. To centralize engine mass, the shaft arrangements are precisely positioned to harness rotating masses at the ideal center of gravity.

Throttle body

• The FE 501s features a 42 mm Keihin throttle body optimised for throttle response. The injector is positioned to ensure the most efficient flow into the combustion chamber with the throttle cable mounted directly without a linkage for an enhanced response.

Exhaust

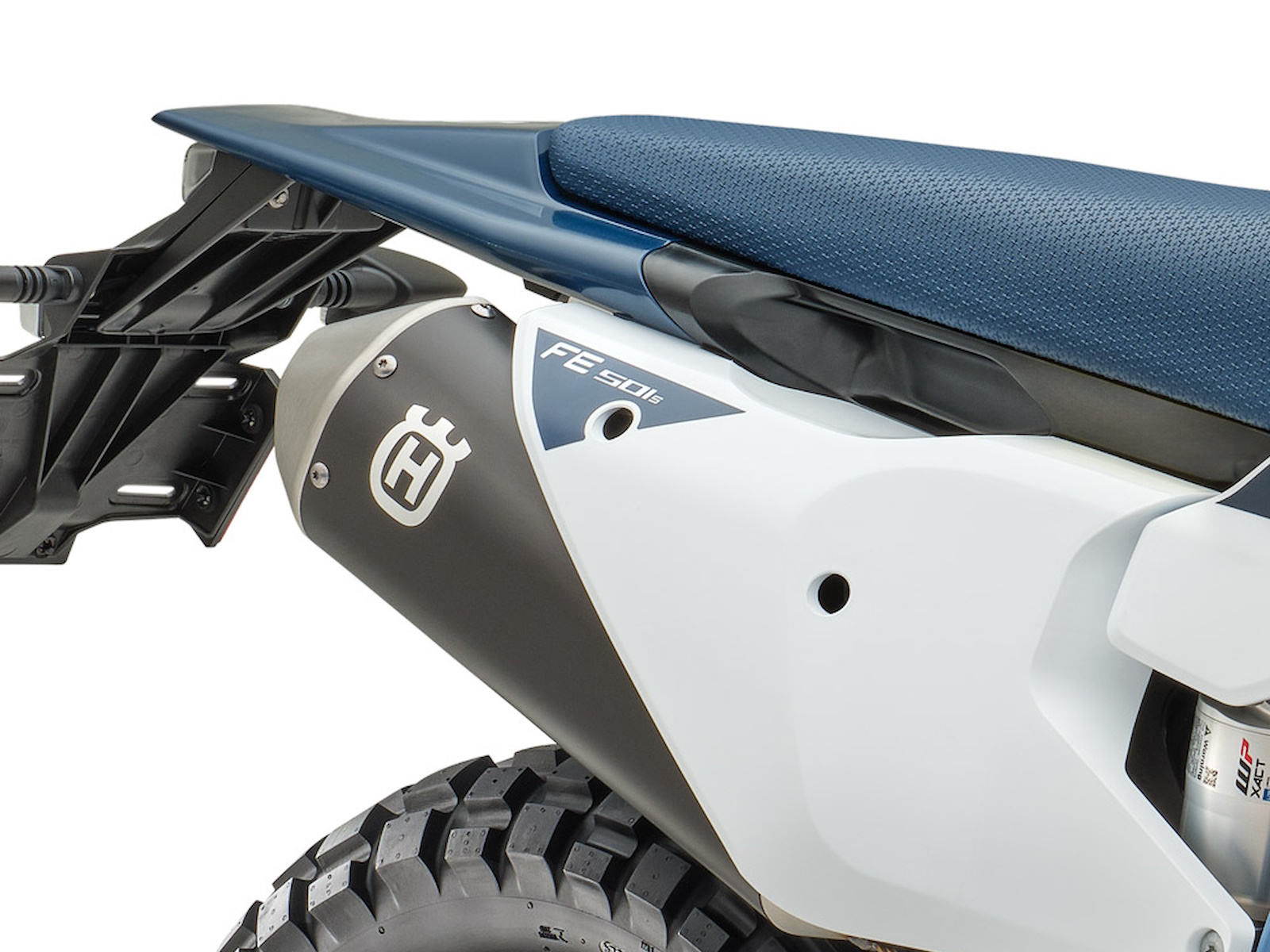

• The exhaust system is expertly designed to deliver class-leading performance at the lowest possible weight with the header pipe manufactured in two pieces. This design allows the header pipe to be removed without having to remove the rear shock. Further innovation allows for a short, compact silencer without increasing sound levels. The silencer is crafted from lightweight aluminum and stylishly finished with a black coating to highlight its premium quality.

Frame

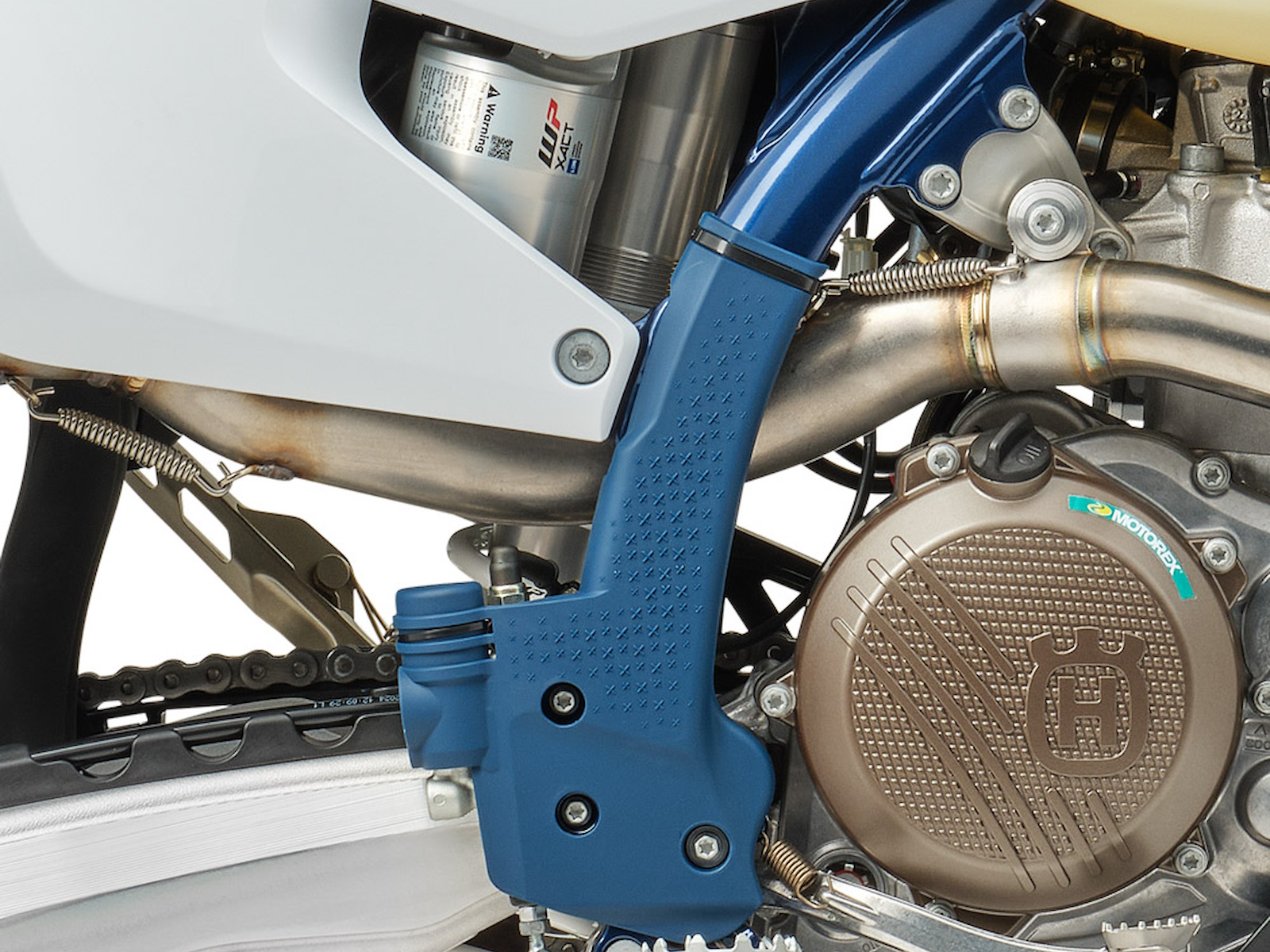

• A proven chromium molybdenum steel frame ensures straight-line stability at speed without sacrificing agility through the slow and technical sections. Optimized wall thickness throughout the chassis aids durability, in addition to providing unparalleled rider feedback and energy absorption. For an optimized level of anti-squat behavior and overall chassis balance, the shock is not directly connected to the main tube. The frame is complete with a premium metallic blue powder coating with frame protectors offering improved grip in all conditions.

Hybrid subframe

• Made from 60% polyamide and 40% aluminum, the subframe offers exceptional strength and durability at a low overall weight of just 3.9 lb (1.8 kg). The lower subframe spars and frame mounts are manufactured from cast aluminum for reliability, with the upper section made from injection-molded polyamide to enable specific flex characteristics.

Swingarm

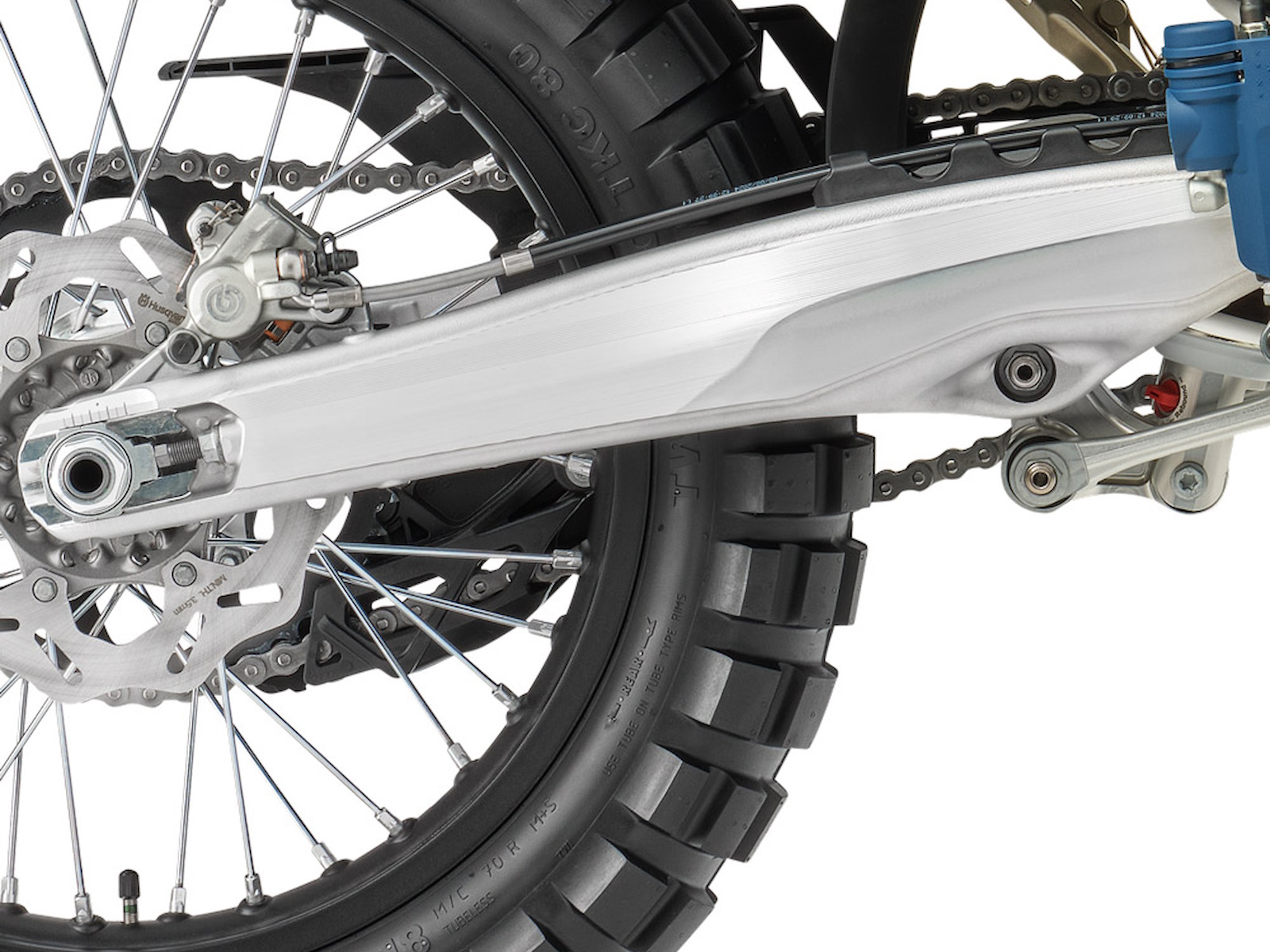

• The swingarm is manufactured using a die-cast production process for optimal rigidity. To match the flex characteristics of the chassis, a 22 mm rear axle is utilized. Additionally, the swingarm is designed to enhance the durability of the chain glider while the chain guide features a rounded profile that makes it less prone to catching on external objects.

Bodywork

• Adorned with clean, Swedish-inspired graphics, the bodywork is designed to allow riders to perform at their best for extended periods of time. A flat seat profile offers unrestricted movement with a new, high grip cover ensuring riders stay firmly in place under hard acceleration. Above the side panels, recessed pockets allow for the machine to be lifted and moved, which is particularly beneficial in highly technical terrain.

Radiators

• Manufactured from high-strength aluminum, the radiators are designed using Computational Fluid Dynamics (CFD) to channel air through them in the most effective way. A large center tube channels coolant through the frame to reduce pressure at this point in the system for a more consistent flow. An internal thermostat enhances reliability while the radiator cap features a bayonet style closure for a secure fitment.

Triple clamps

• The black-anodized, CNC-machined triple clamps offer premium quality as standard. They have a carefully calculated 22 mm offset and are expertly crafted using superior techniques and materials for the highest levels of quality and reliability. The handlebar clamp has a large contact surface with the ProTaper bars to help prevent twisting in the event of an impact and offers two mounting options for customizable ergonomics.

Innovative advantage

WP XACT front forks

• Designed and developed for the rigors of enduro riding, the WP XACT Closed Cartridge spring forks offer consistent performance thanks to an innovative internal design that optimizes oil flow and prevents oil from foaming. The hydrostop, effective in the last 68 mm of travel, is highly advantageous when landing heavily as it helps to maintain forward momentum. Additionally, riders can alter the compression and rebound settings quickly and easily using the tool-free adjusters found at the top and bottom of each fork leg.

WP XACT rear shock

• The lightweight WP XACT rear shock offers 300 mm of travel. With the rebound and both high and low speed compression adjustable by hand, setting changes can be achieved quickly and easily without tools. Complete with a CFD optimized shock piston, low friction seals, and a new, smaller linkage bolt to reduce weight, consistent damping, comfort, and traction is guaranteed.

Hydraulic brakes

• The highest level of performance is guaranteed thanks to the class leading Brembo calipers and controls, which are new for 2025. Together with GSK wave discs (260 mm disc front and 220 mm rear), which are designed to prevent mud from building up, superior stopping power and braking confidence is assured in all conditions.

Hydraulic clutch

• The new, high-performance Brembo hydraulic clutch system delivers even wear, near maintenance-free operation, and perfect feel in every condition. With this hydraulic system, free play is constantly compensated so that the pressure point, and the function of the clutch, remain identical in cold or hot conditions, as well as over time. Countless hours of testing have proven the reliability of the high-quality, Italian-made Brembo hydraulic system.

Wheels and tires

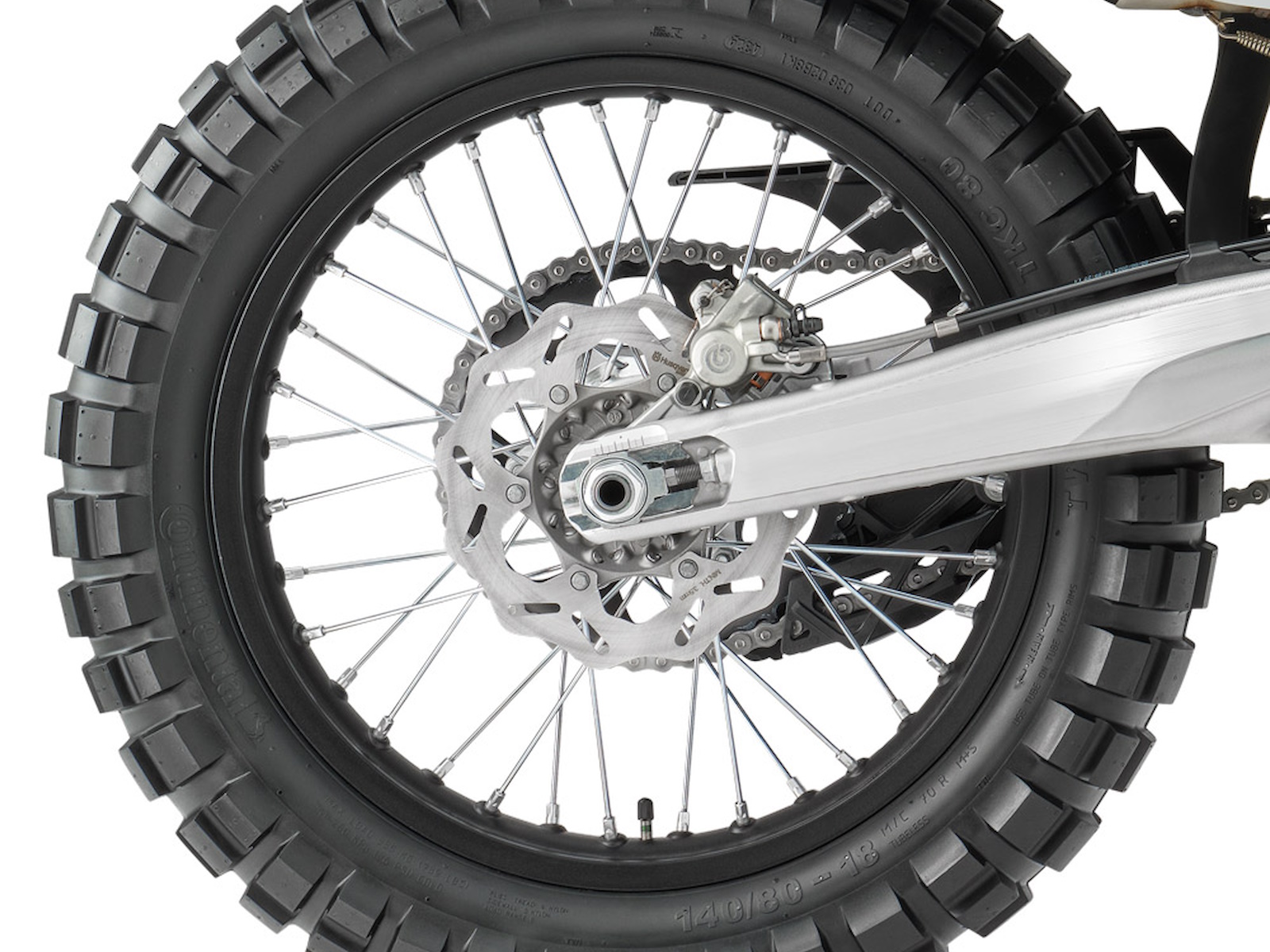

• CNC-machined hubs, strong spokes, and high-strength, black-anodised alloy rims are used to assemble the wheels. They are complete with the latest Continental TKC 80 dual-sport tires for precise cornering and superior grip across varied terrain.

Technology advanced

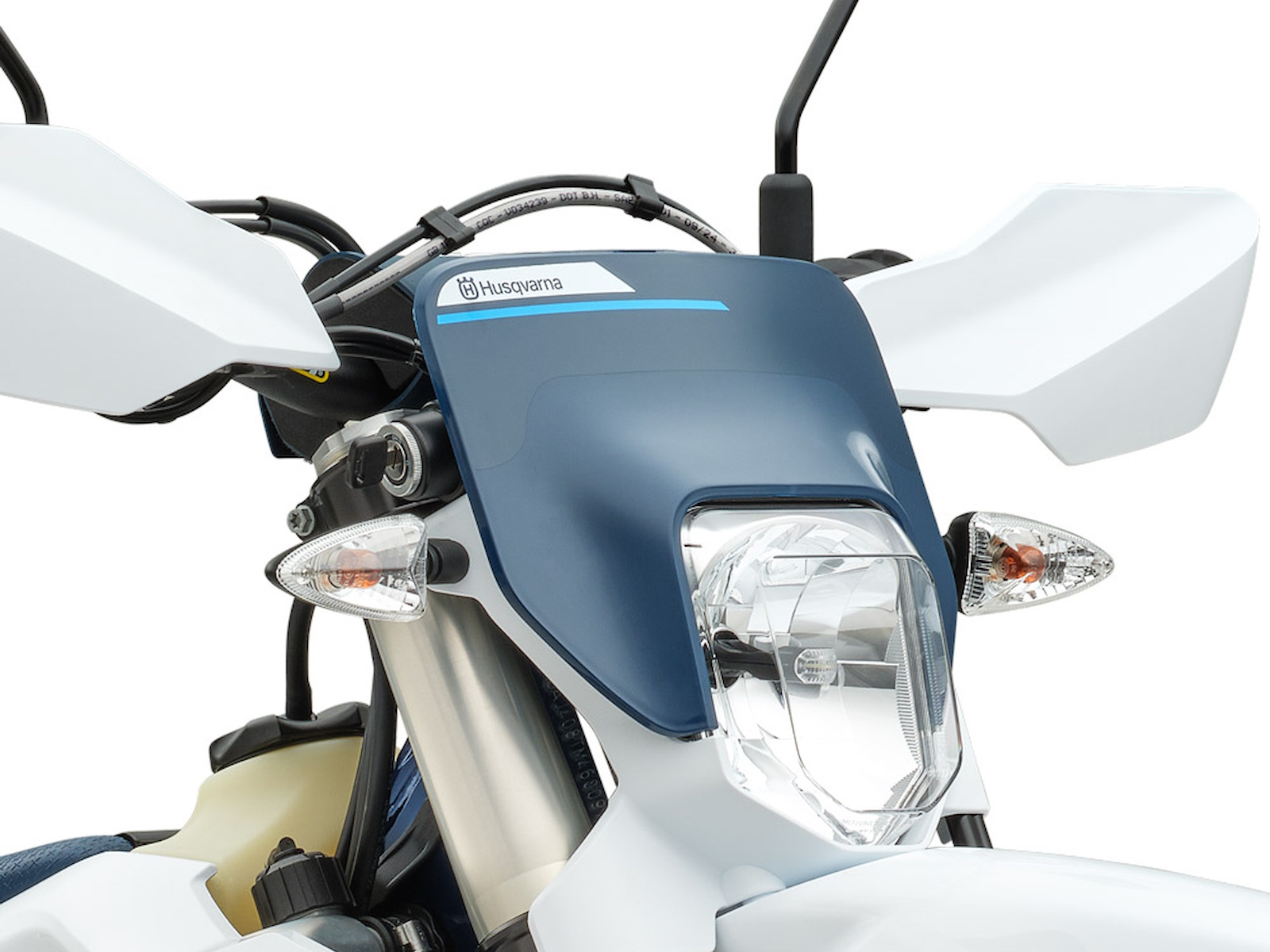

LED headlight

• The LED headlight provides a remarkably bright light output for excellent visibility at night and is particularly effective when riding through dense woodland. A clever mounting design sees the LED lighting unit fitted inside the headlight mask using a quick-release system that allows it to be replaced quickly and easily if damaged.

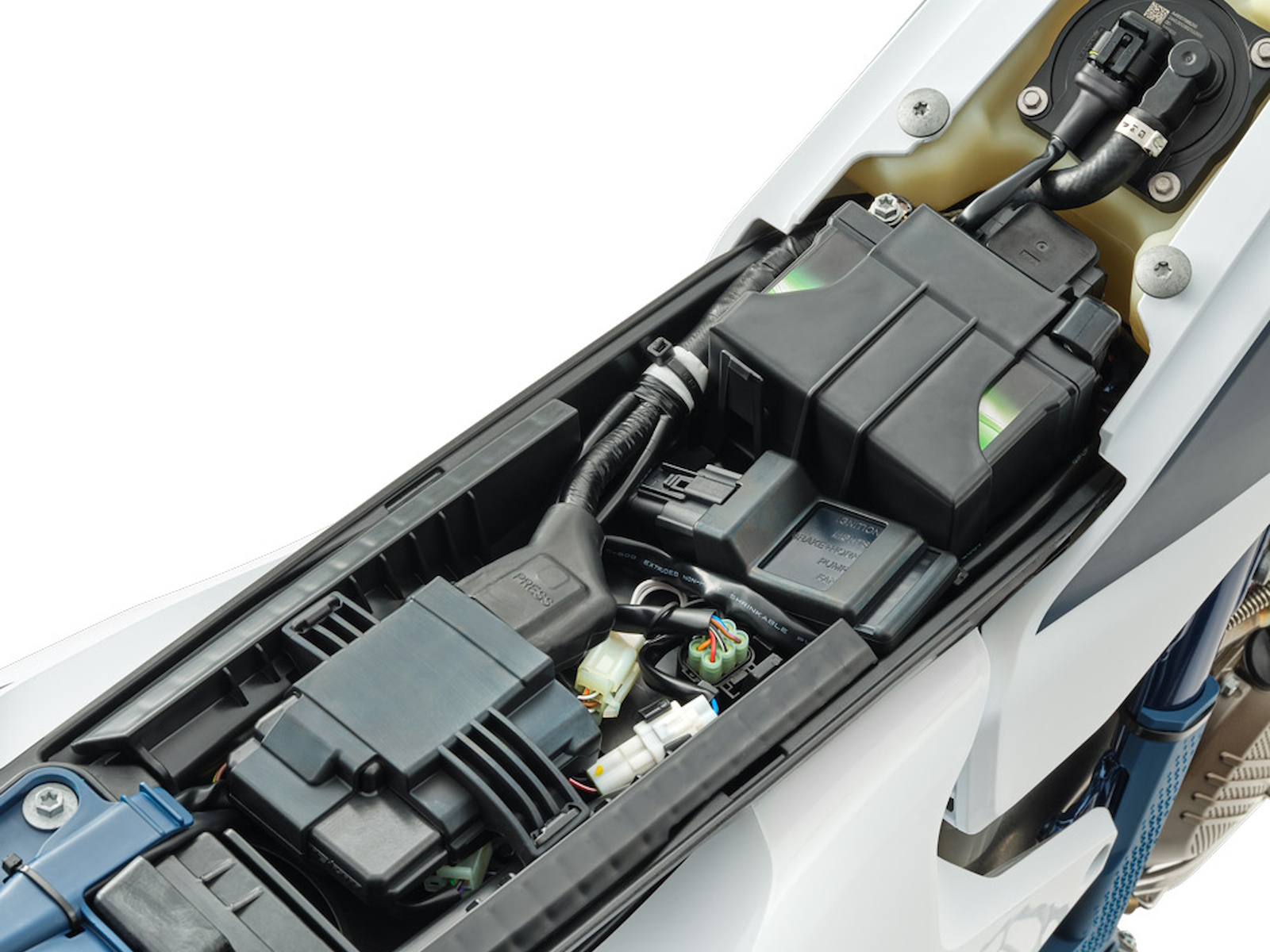

Offroad Control Unit

• The OCU replaces electronic fuses and relays (main relay, fan relay, light relay) and can be found under the seat. All outputs are switched depending on signals from the voltage regulator and the ECU. In the event of over-current, outputs are deactivated individually. This allows a simple error detection as the status of each output is indicated by an LED light, making it easy to find an issue quickly and get back to riding.

Throttle and grips

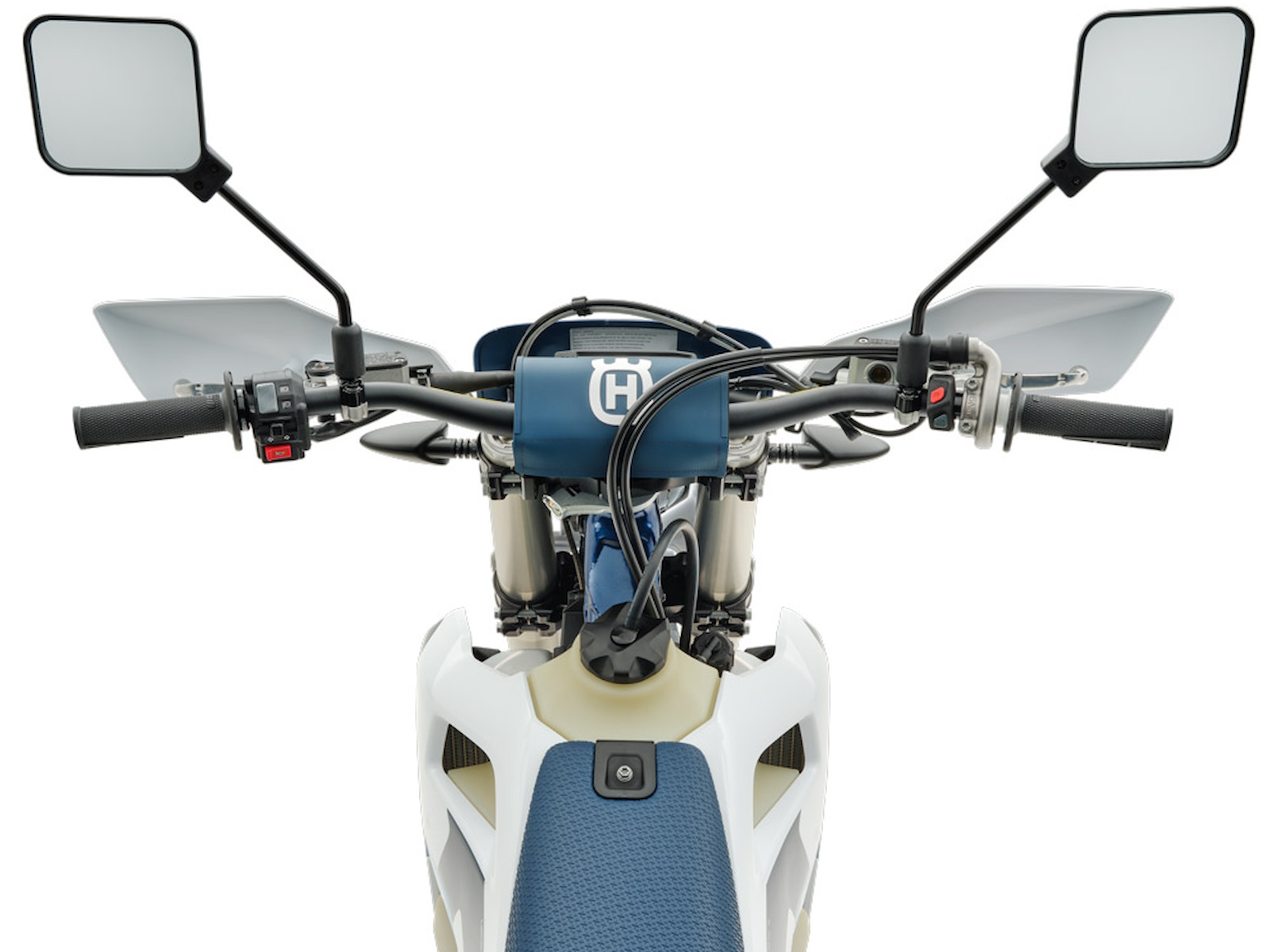

• The ODI lock-on grip on the left side does not require gluing, while on the right, the vulcanized grip features an innovative integrated throttle mechanism. The assembly has easy free-play adjustment and, by changing a cam, throttle progression can be altered. The throttle housing has been designed for optimal stability and resistance against impacts.

Electric start

• Taken from the motocross range, the combined start/stop switch is located on the right side of the handlebar for easy, thumb-operated use. Not only simplifying the starting and stopping of the engine, but the removal of a designated stop only button from the handlebar reduces the risk of potential damage or activation in the event of a fall.

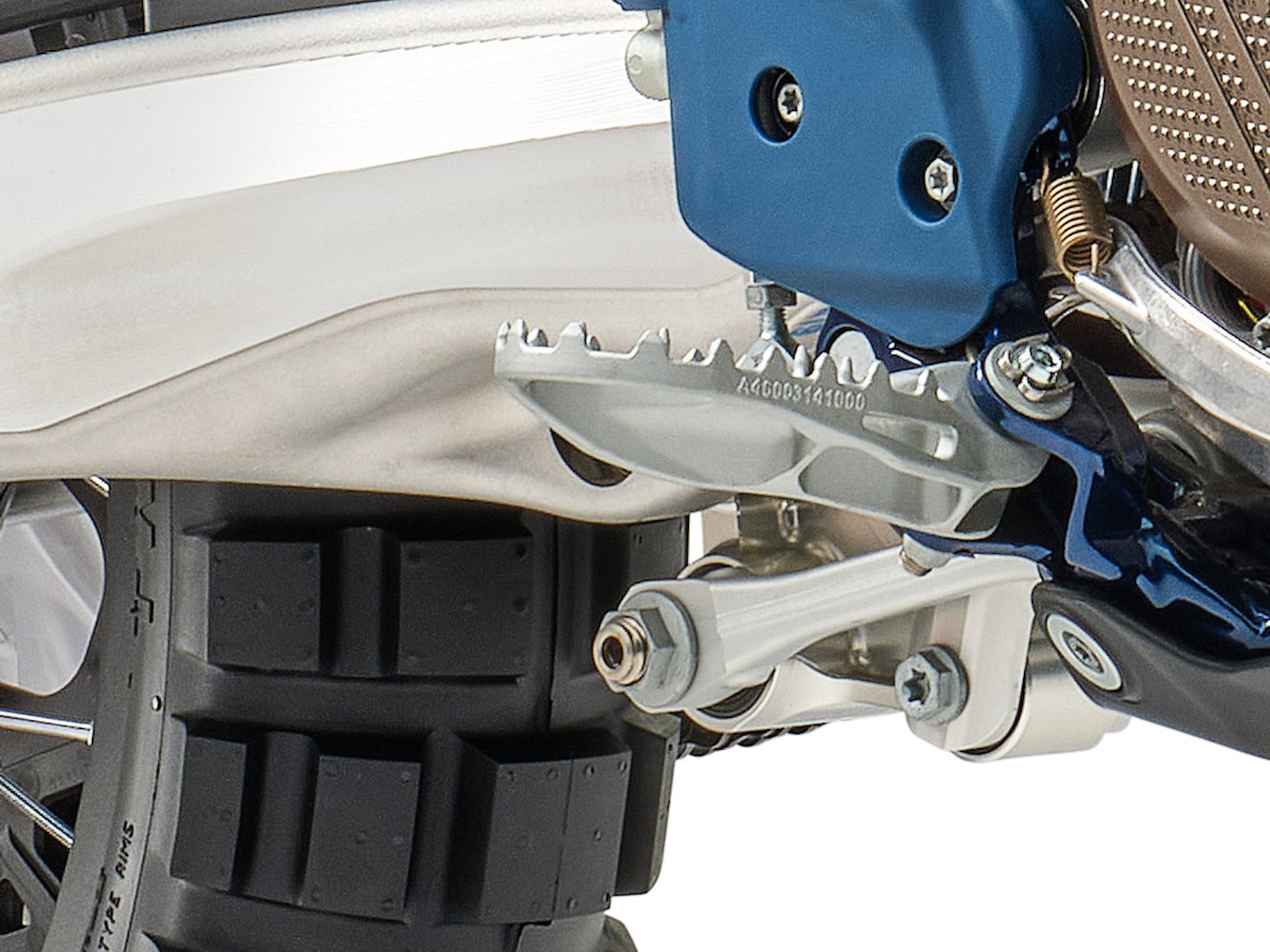

Footrest

• Using state-of-the-art computational fluid dynamics, the large footrests are designed for maximum control and to prevent mud from building up. Additionally, the mounting position brings them inwards, which makes them less susceptible to catching on the ground through deep ruts.

Airbox

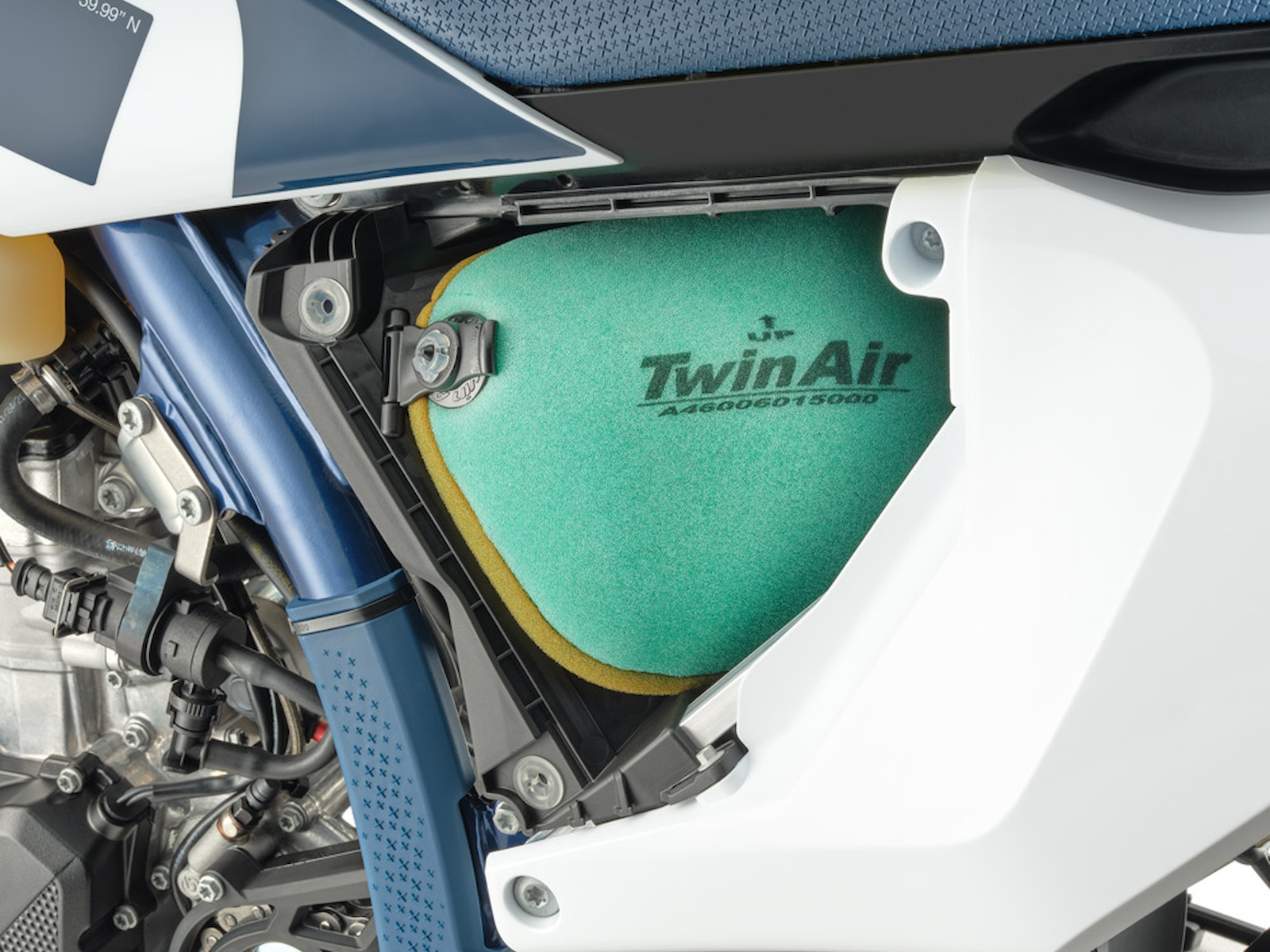

• With precisely positioned inlet ducts reducing air flow deformation, the airbox ensures unrestricted airflow with maximum filter protection. The Twin Air filter is mounted onto a cage designed to offer accurate installation and can be easily accessed without tools by removing the left side panel.

Warranty & Support

Premium Manufacturer's Warranty

• This motorcycle comes with a Premium Manufacturer's Warranty. Riders enjoy up to 1 year of coverage and experience the thrill of offroad riding with added peace of mind. To keep the warranty valid, always follow the guidelines outlined in your motorcycle's Owner's Manual, including using the bike as intended and completing all scheduled services at an authorized Husqvarna Mobility dealer. The standard manufacturer's warranty conditions, as specified in the delivery certificate, also remain applicable. More information and details on how to benefit from this offer can be found on the Husqvarna warranty page. Valid from Model Year 2027 onwards for all offroad motorcycles as well as the FS 450.
